If you have any need or interest in these or other units, many more are also available. Call 586-216-8004 or email. We also buy and broker lasers and laser systems for our customers. If you have laser equipment to sell contact us for more information.

We ship to most locations throughout the world.

We install, service, provide spare/replacement parts and warranty many lasers and laser systems we sell.

Various laser cutting systems, welding systems and individual lasers are available. All systems available are not listed.  Don't know what you require.  We can evaluate your parts or process and recommend the correct equipment.



Looking for a specific system or laser not listed or have equipment you want to sell or appraised



Equipment Form



CLICK ON PICTURES BELOW FOR ADDITIONAL INFORMATION AND PICTURES

http://www.scearcelaser.com/images/spacer.gif



Kawasaki Robotics 9 Axes Laser Welding/Cladding Cell with additional 7 PLC Axes Pre-Owned 2010

Description

This Pre-Owned 2010 FN30N+ Kawasaki Robotics 9 Axes Cladding Cell with additional 7 PLC Axes was removed from GE Oil and Gas in prefect condition.  It originally incorporated a 2000 watt IPG fiber laser.  The laser was removed and is not included in this sale.  The system can accommodate and IPG laser or any Laser with a QBH output fiber.  Other fiber connections can be utilized with a little modification to Precitec Focus Head.  This Cell was built to accommodate large GE parts but, is versatile enough to accommodate many types of parts with tooling changes.  The cell can be used for multi-axis welding as well as cladding.  Includes Operation, System Training, Tooling Change and  Calibration Manuals.   This cell is complete with Sulzer Metco TWIN 10C Powder Feeder, enclosure with power opening doors and all required safety circuits and hardware.  Cell was over 2 million new with laser.



PRICE  $159,000.00  REDUCED

(All offers considered)







  http://www.scearcelaser.com/images/usedlaser7.gif

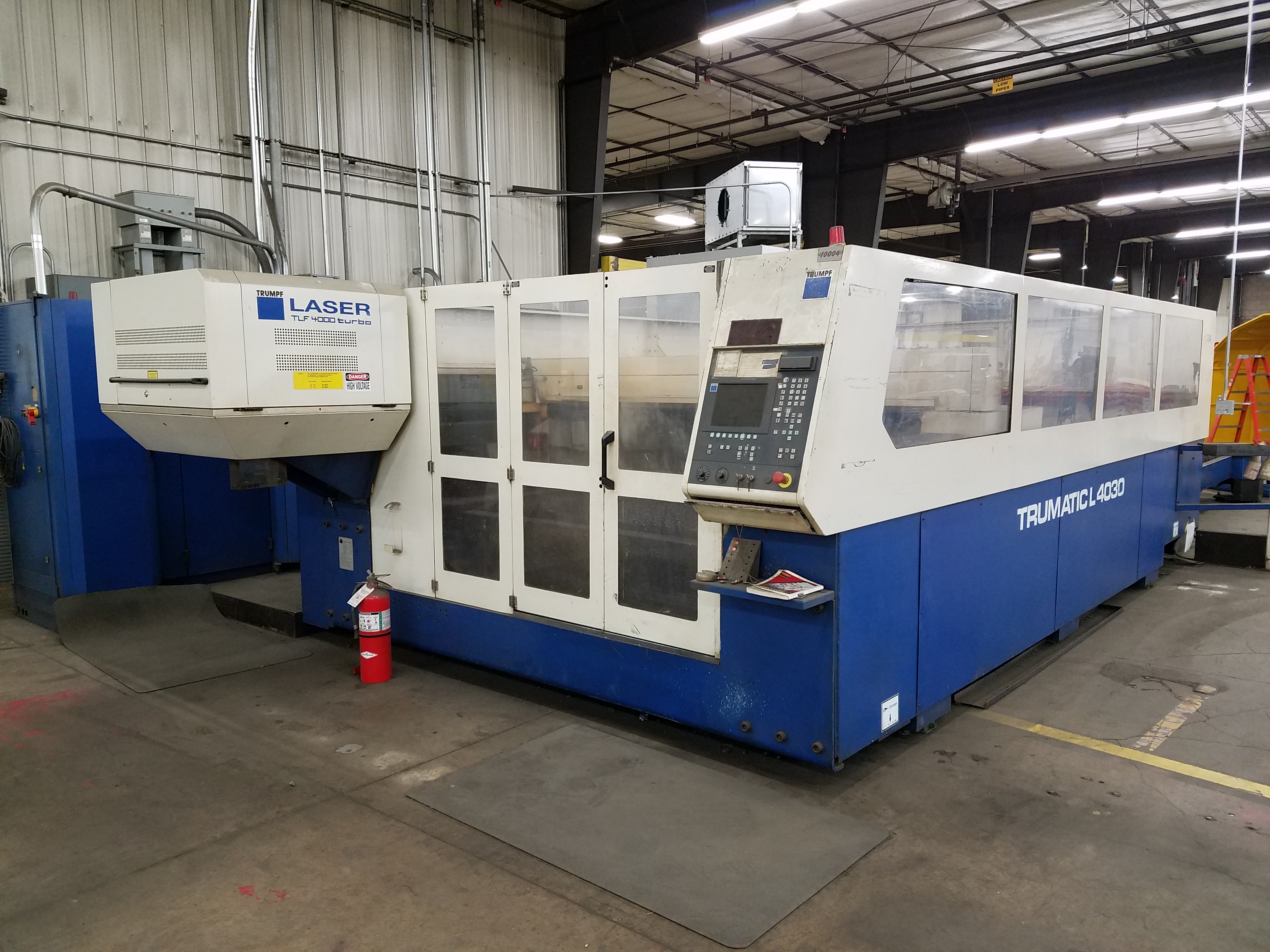

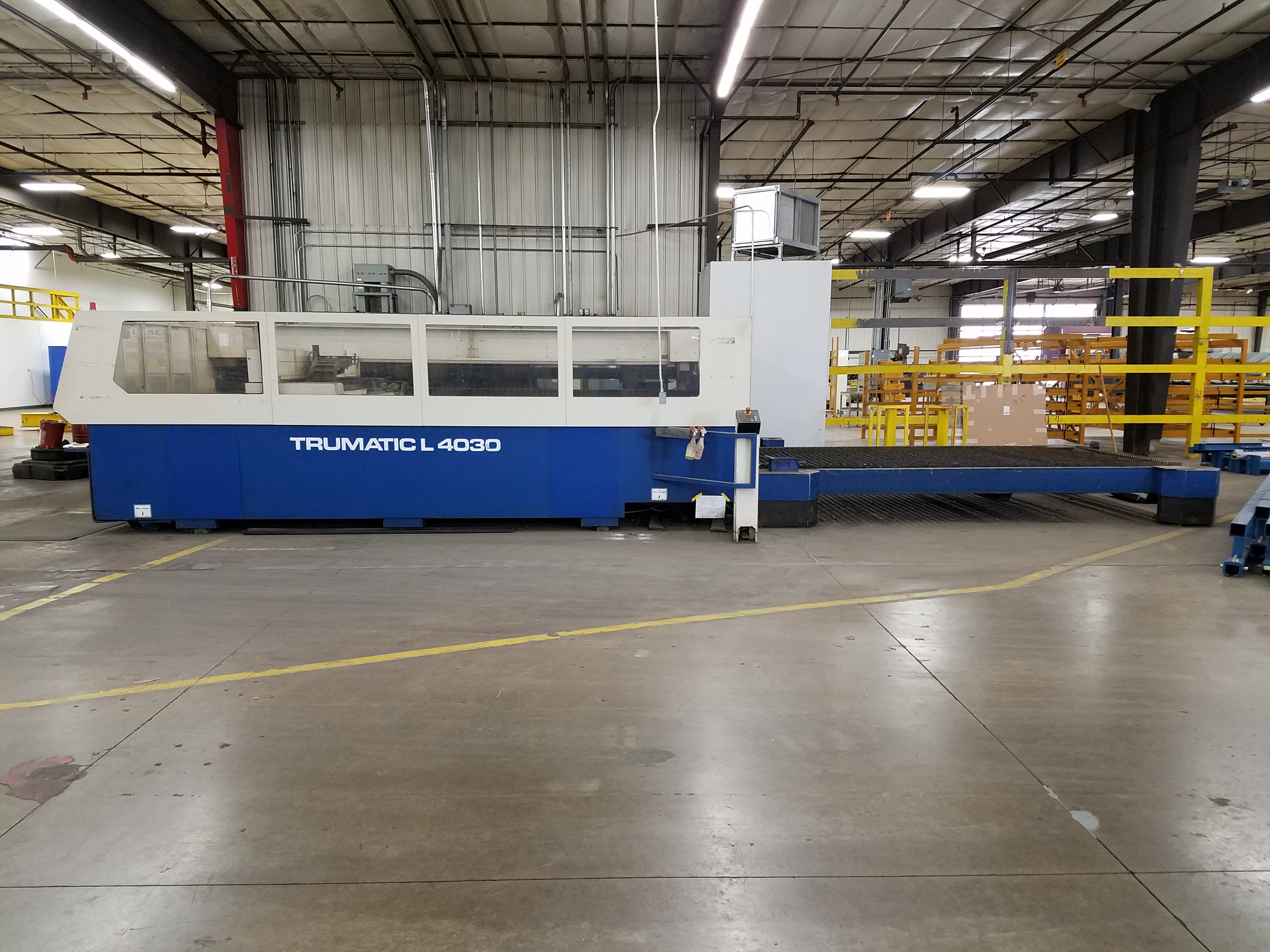

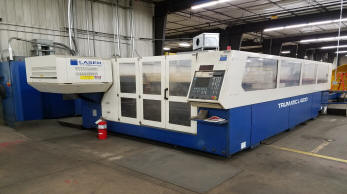

TRUMPF TRUMATIC L4030

Model Year 2001
WORKING AREA: X-AXIS 160"
Y-AXIS 80"
Z-AXIS 4"
MAX. WORKING WEIGHT 2820 LBS
MAX. POSITIONING SPEED
SIMULTANEOUS 3300 IPM
EQUIPPED WITH:
4000 WATT RESONATOR
SIEMANS CNC CONTROL
AUTOMATIC PALLET CHANGER
Year 2001, Trumpf L4030, S/N 130536 , Laser S/N 443227,
Machine hours = 67,760 (6/6/14)
Laser resonator Model TLF 4000, 4,000 watts
Less than 2000 hours on new resonator
Laser hours = 65,950 (6/6/14) (trumpf supplied both the laser resonator head
Exchange unit and a new frequency drive for magnetic
Levitation power unit, installed July, 2014 )
CNC control – Siemens 840D
Slag/Slug conveyor system
Keller Re-circulating Dust/Fume collector, Model L-CUT 4-13S (2,600 cfm)
Dual pallet exchange system
Light curtains around change table
Beam delivery Bellows, ALL NEW 6/2014
Rack and pinion bearing rails Bellows, All NEW 6/2014
Reidel Closed loop chiller (1 new Fan installed)
System is sold  “as is, where is”, as inspected.
Machine is under power and located in the Mid-West

PRICE  $230,000.00  (All offers considered)



http://www.scearcelaser.com/images/spacer.gif

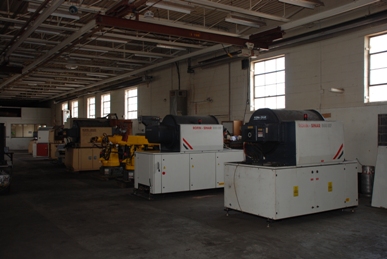

 ROFIN SINAR MODEL 840, 850 and 860HF LASERS

A few of these lasers are available. They produce a weld quality mode (Multi-Mode) at 4000 and 6000-watts. Many of these lasers were placed in welding cells for automotive transmission welding.

Price range from $42,000  for a 840 and  a $135,000 for a unused 860HF



http://www.scearcelaser.com/DSC_0160-web.JPG

http://www.scearcelaser.com/images/spacer.gif

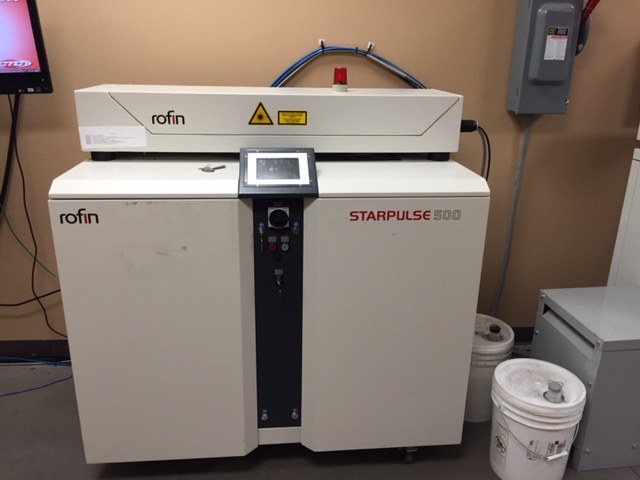

ROFIN MODEL STARPULSE 500

Description  500W Pulsed  Nd:YAG Laser
Year Mfg.  2010
Condition  Good
Demonstrable  Yes
Max Average Power  500 watts
Max Joules per Pulse 120
Pulse Width Range 0.3-20 ms
Pulse Rate Range   1-500Hz
Pulse Shaping  Yes
Beam Delivery Fiber, QBH
System Controller & Software Standard
Cooling Water Chiller included
Input Power  400V 3P+N+P, 63A

Accessories  460/480V to 400V Transformer, Fiber (RQB, 400um x 10M), Collimator, Weld Focus Assembly (f 60mm, 140mm Work Distance), Inline Camera, 1 set replacement lamps and DI filter

PRICE  $30,000.00   (All offers considered)

http://www.scearcelaser.com/images/usedlaser3.gif

http://www.scearcelaser.com/images/spacer.gif

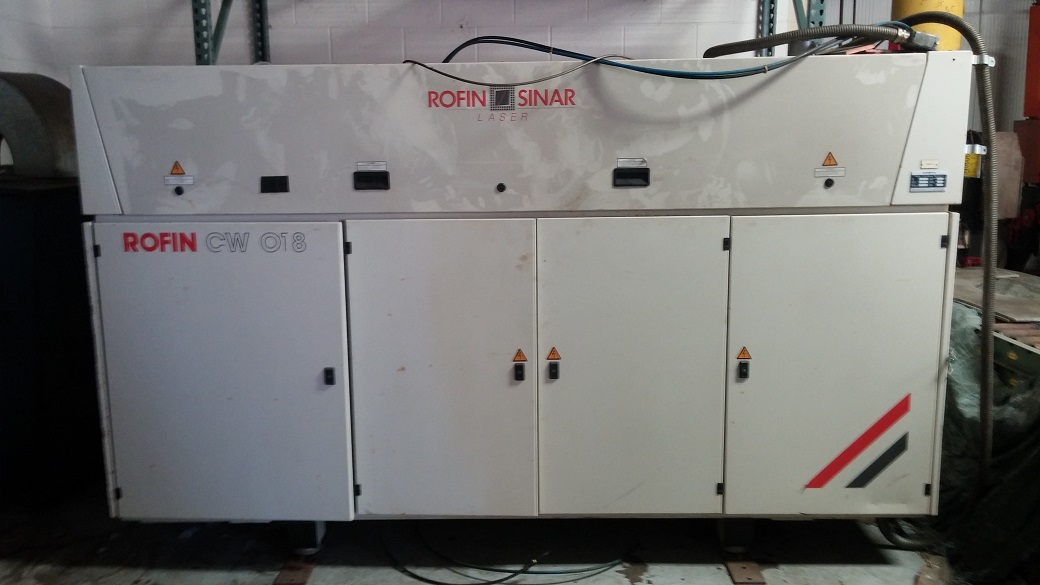

ROFIN SINAR CW 018 Nd:YAG LASER

Rofin Sinar Laser CW 018. It is complete and was recently repaired.   This 1800 Watt Nd:YAG Laser, and can be used continuous or pulse mode. This laser was used on a piece of CNC equipment in an automotive facility and last used about five years ago. It was taken out of service when project ended.  Has new lamps and lasing cavity (terminology?). It includes delivery fiber and standalone control station on wheels. Will load on your truck or carrier.  Unit is currently ready for shipping.



 $13,000 or Best Offer

http://www.scearcelaser.com/images/wpe30342.jpg

http://www.scearcelaser.com/images/spacer.gif

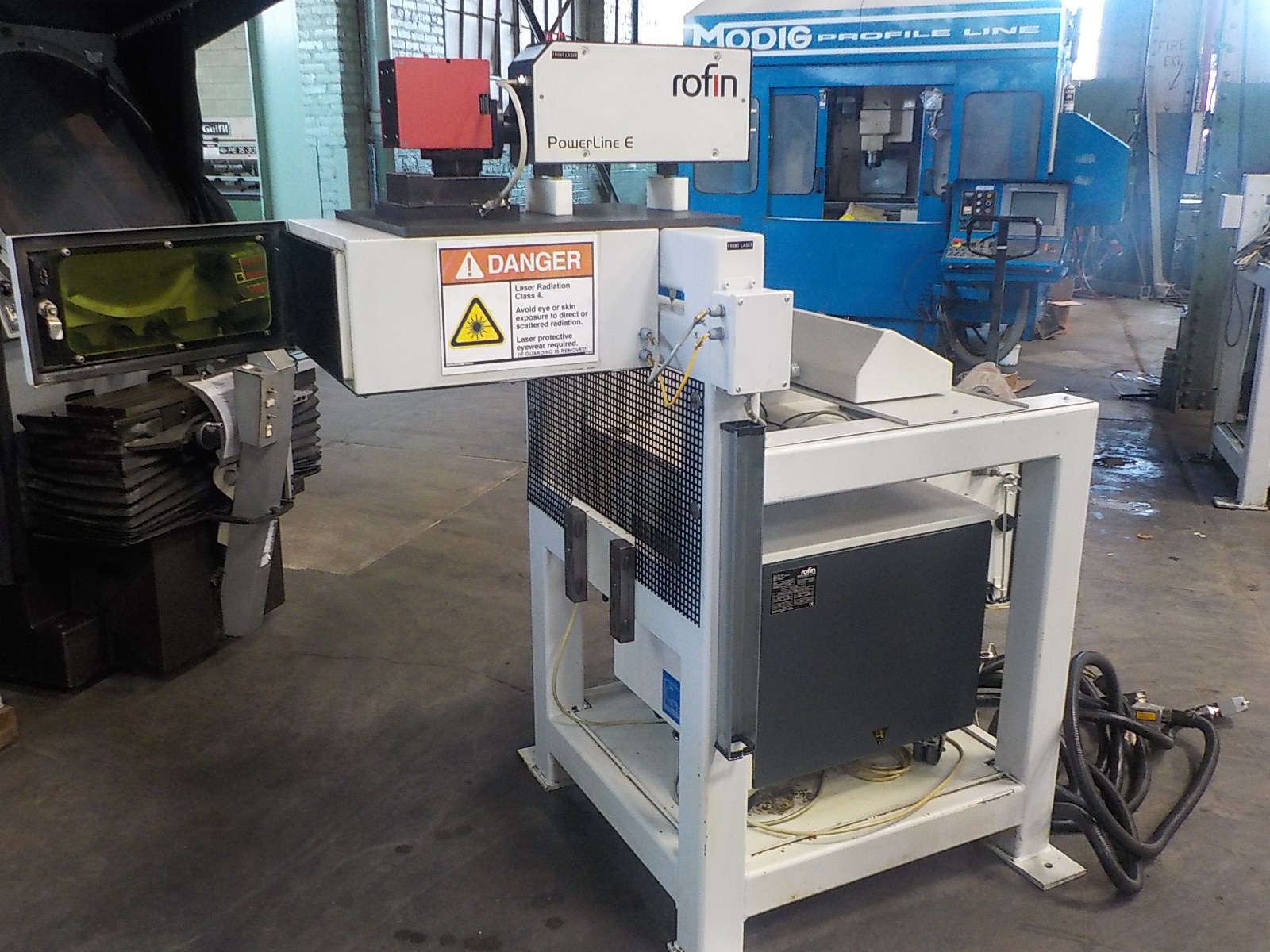

ROFIN POWERLINE RSM 10E ETCHING SYSTEM

Specifications:

Model #: Powerline RSM 10E

Voltage: 230VAC

Total Wattage: 1.88kW

Amperage: 8.5A

Coolant: Water

Wavelength: 1064nm

Laser Energy: 10W

Laser Type: ND: YAG



$10,000 (ALL OFFERS CONSIDERED)

Compact laser housing

Ideal for marking glass, metal or plastics



Can mark greyscale images and barcodes

Rofin Powerline RSM 10E
